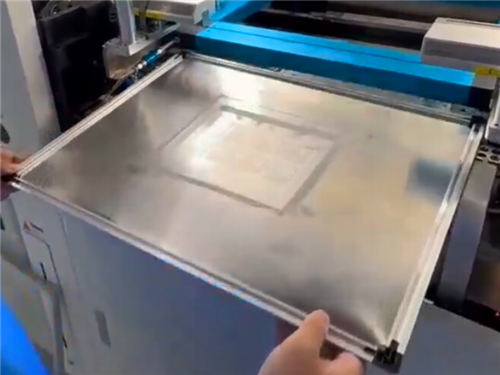

Premium Pneumatic SMT Stencil for Precision PCB Solder Paste Printing
1.Advanced High-Frequency Performance
Engineered for excellence in surface mount technology, our premium 736mm pneumatic SMT stencil delivers unmatched precision in solder paste deposition. Crafted from high-grade stainless steel, this professional stencil solution ensures consistent, high-quality results across all your PCB assembly applications.
2.Key Benefits
Precision Printing: 0.12mm thickness guarantees optimal solder paste control
Durable Construction: High-quality stainless steel resists wear and corrosion
Stable Performance: Rigid 736mm frame maintains perfect tension
Universal Compatibility: Works with all standard SMT equipment
Cost-Efficient: Reduces material waste and rework time
3.PCB Construction Specifications
| Specification | Details | Benefits |
|---|---|---|
| Outer Dimensions | 736mm × 736mm | Compatible with most standard PCB sizes and SMT equipment |
| Stencil Thickness | 0.12mm | Ensures precise solder paste transfer while controlling paste volume |
| Material | High-quality stainless steel | Excellent corrosion/wear resistance; extends service life |
| Frame Dimensions | 736mm × 736mm | Provides sturdy support, maintains flatness for accurate printing |
4.Target Applications
Consumer Electronics: Smart devices, wearables, home appliances
Automotive Electronics: ADAS modules, infotainment systems
Telecommunications: 5G equipment, network infrastructure
Industrial Electronics: Control systems, power modules
